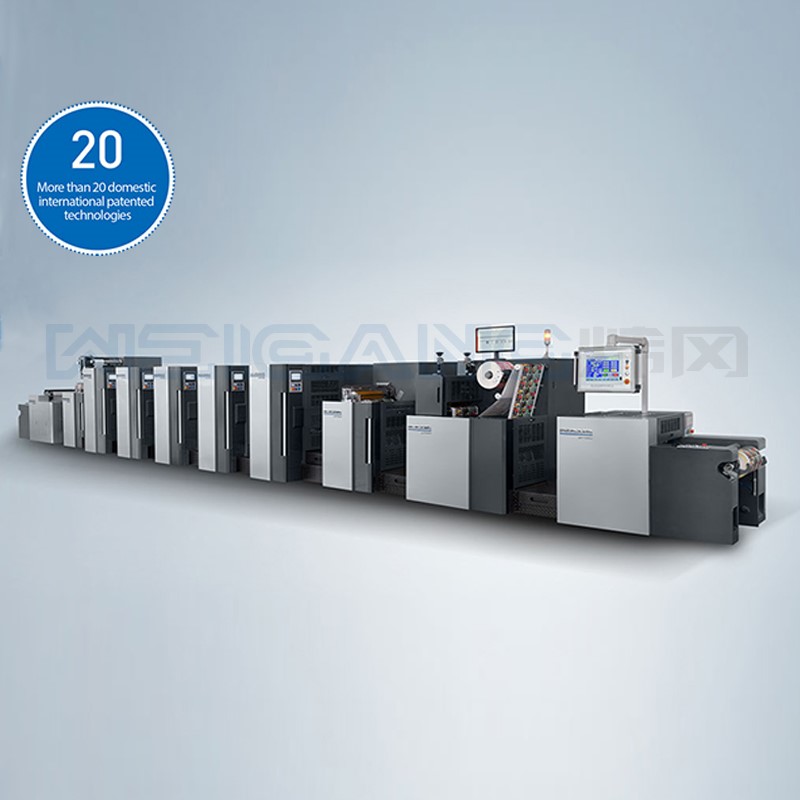

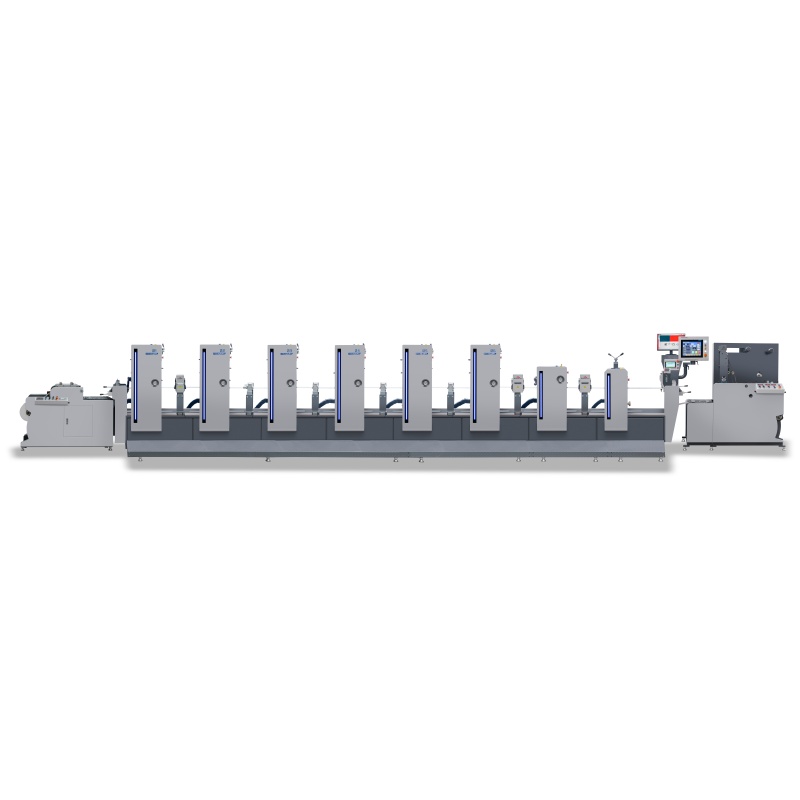

Rotary Offset Printing Machine-ZP-480/680/900/1200
1. High-speed rotary offset printing machine(with sleeve technology)owns more than 20 national and international patents.
2. Continuous offset printing mode and variety printing sleeve technology makes fast printing speed and high printing quality.
3. The plate roller and the blanket roller adopt the air expansion sleeve type achieves short plate changing time, easy operation, and high efficiency.
online service
Main Features
1. High-speed rotary offset printing machine(with sleeve technology)owns more than 20 national and international patents.
2. Continuous offset printing mode and variety printing sleeve technology makes fast printing speed and high printing quality.
3. The plate roller and the blanket roller adopt the air expansion sleeve type achieves short plate changing time, easy operation, and high efficiency.
4. The inking system and water system are automatically adjusted according to variable printing sleeve. Super inking system makes the inking move evenly, printing pressure more stable and easy adjusting.
5. Unwinder has automatic tension control and is equipped with web guider.
6. Printing tension controls automatically, the web passing smoothly even at high speed, stable printing tension ensures high-speed and high-precision printing.
7. This machine has the function of automatic pre-registration, automatic registration by photocell after set-up and second pass with registration.
8. Inline inspecting system can be installed according to user’s requirement.
9. Based on offset printing units, machine can combine with other functions such as flexo, gravure, cold stamping, hot stamping, die cutting, embossing and so on.
10. This machine is suitable for variable substrates, such as: self-adhesive paper, paper and unsupported film (BOPP,PET,PP,PVC, etc.).
Main Technical Parameters
|
Model |
ZP-480 |
ZP-680 |
|
Max. Printing Speed |
180m/min |
180m/min |
|
Printing Color |
4-12(Colors) |
4-12(Colors) |
|
Max. Printing Width |
460mm |
660mm |
|
Max. Web Width |
480mm |
680mm |
|
Printing Repeat Length |
380-690mm(15-27.5inch) |
430-690mm(17-27.5inch） |
|
Max. Unwinding Dia. |
1000mm |
1000mm |
|
Max. Rewinding Dia. |
1000mm |
1000mm |
|
Dimensions(L×W×H) |

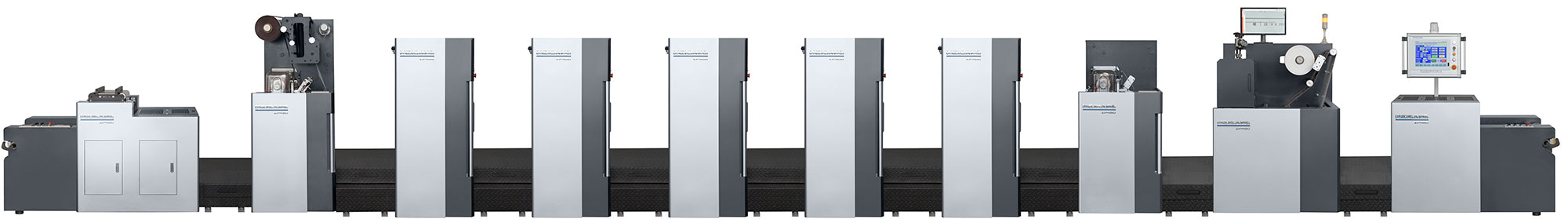

15.2M × 3.7M × 2.1M Unwinder+Flexo unit with cold stamping+5 Offset units+Flexo(varnishing)+Die-cutting unit+Rewinder |
|
-

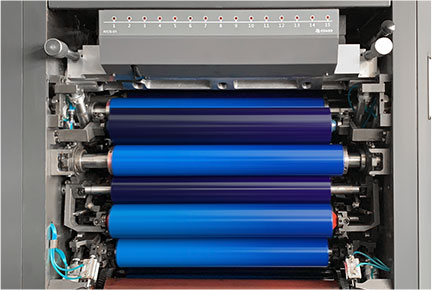

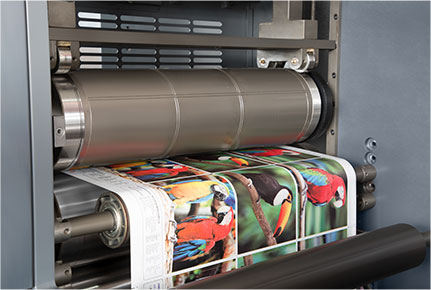

Heavy Offset Printing Unit
High quality heavy offset printing unit with well-designed inking system which can transfer ink fast & evenly, avoids gear mark and ghost image effectively.The printing quality can be highly improved.
-

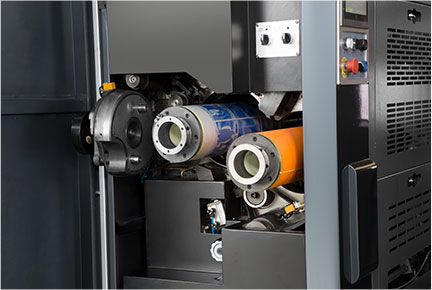

Variable Printing Sleeve
When the printing job with different repeat length, just change both plate and blanket sleeve accordingly.The sleeve changing is very fast and efficient.
-

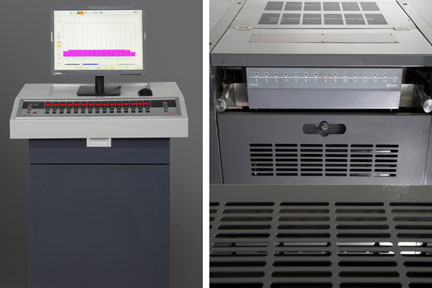

Automatic Ink Control System
One-button setting, ink control is automatically, because of ink supply automation and precision , it improves the printing efficiency & quality, and reduces wastage.
-

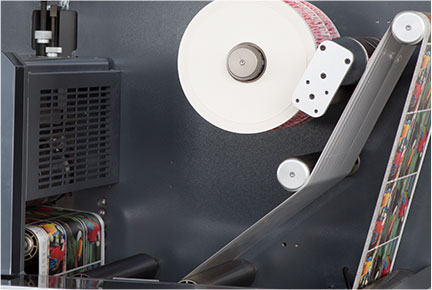

Matrix Unit
Snowball type waste collecting device, matrix speed synchronizes to the printing speed.
-

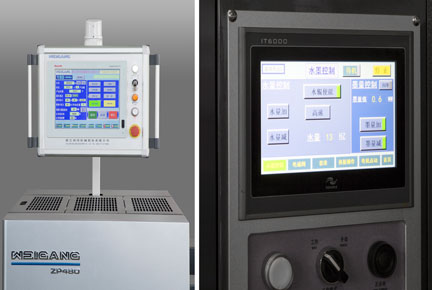

Human Machine Interface (HMI)
Touch control panel, faster operating speed.main control with 15inch large touch screen, friendly design and easy operation; each printing unit equips with 7inch touch screen, can be operated independently and easily. Error alarms will be displayed instantly, which shortens the trouble shooting and repairing time greatly.
Superb Print Quality And
Excellent Performance Ratio
-

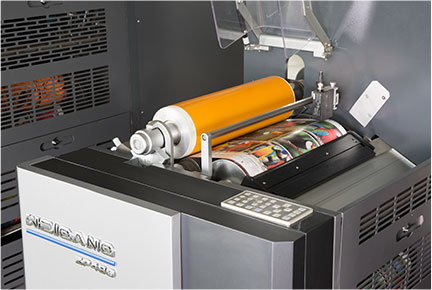

*Flexo Unit
In order to print more shining, the flexo unit can do spot varnishing or full varnishing or drip off, can be installed according to user’s requirement.
-

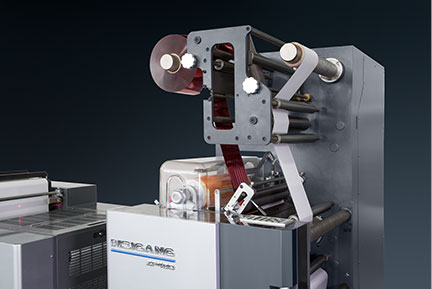

*Cold Stamping Unit
Cold stamping with registration and hologram transfer, can be installed according to user’s requirement.
-
*Die-cutting Unit
Adopts magnetic roller, the printing and die-cutting can be finished at one time. it can be installed according to user’s requirement.
-
-
-
-
-
