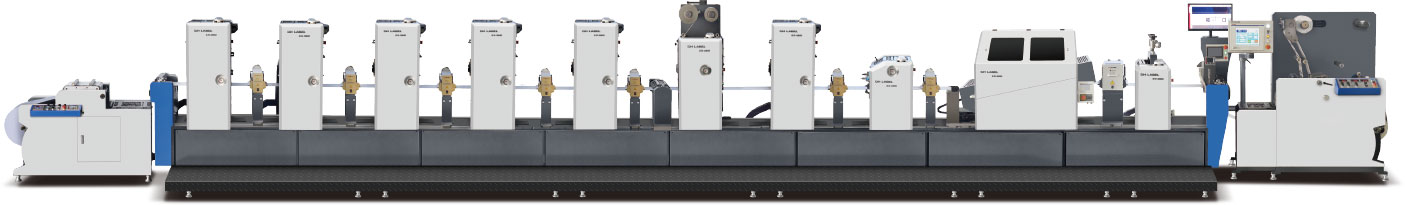

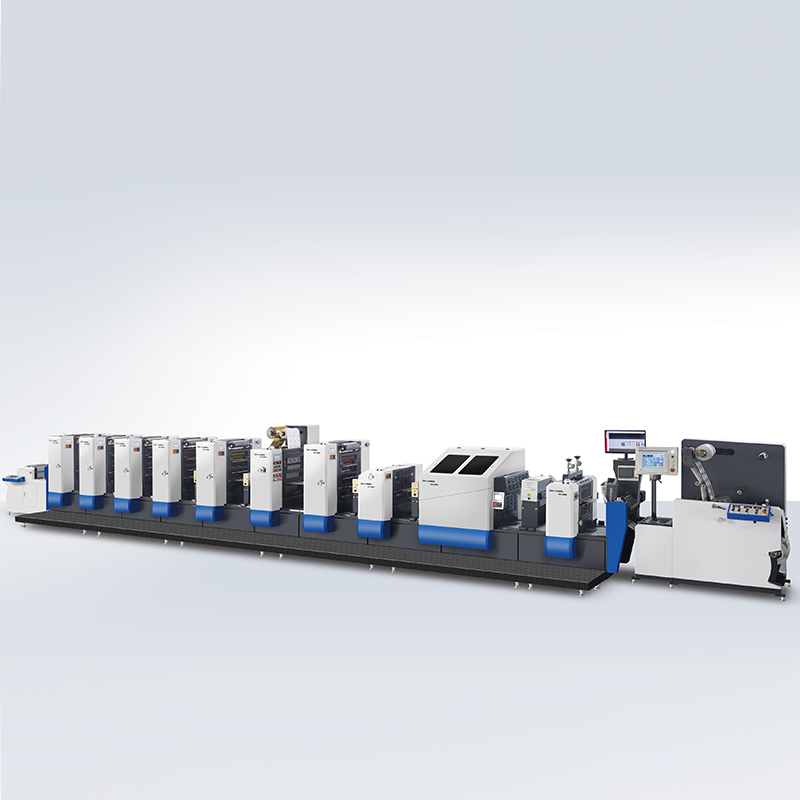

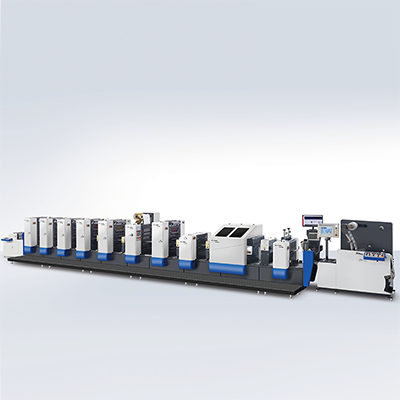

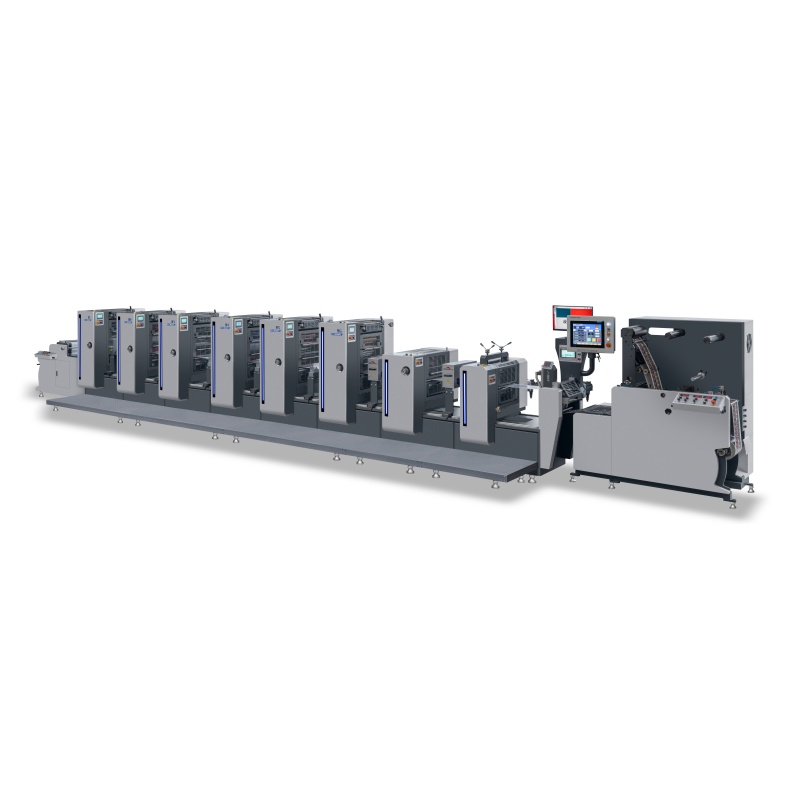

Intermittent Label Offset Printing Machine-ZX-320/450
ZX-320 machine adopts latest servo control system which can ensure the material nip steady and accuracy. It can free from the printing roller change.
The operation of this machine is faster, convenient and simple. PS plate intermittent printing hits the high level label demands from short run to long run. It’s the best choice for printing highest quality labels with lowest production cost.
online service
Main Features
ZX-320 machine adopts latest servo control system which can ensure the material nip steady and accuracy. It can free from the printing roller change.The operation of this machine is faster, convenient and simple. PS plate intermittent printing hits the high level label demands from short run to long run. It’s the best choice for printing highest quality labels with lowest production cost.
|
Model |
ZX-320 |
ZX-450 |
|
Printing Speed |
50-180 rpm/min |
50-150 rpm/min |
|
Printing Color |
4-10 Colors |
4-10 Colors |
|
Max. Printing Length |
350mm |
380mm |
|
Max. Web Width |
320mm |
470mm |
|
Max. Printing Width |
300mm |
450mm |
|
Max. Unwinding Diameter |
700mm |
700mm |
|
Max. Rewinding Diameter |
600mm |
600mm |
|
Power Supply |
3 Phase 380V |
3 Phase 380V |
|
Total Power |
33.6KW (Without UV Power) |
40KW (Without UV Power) |
|
Dimensions(L×W×H) |
10550×1600×1800mm (6 Colors) |
11150×1700×1800mm (6 Colors) |
|
Main Machine Weight |
About 9.5 T |
About 11.5 T |
-

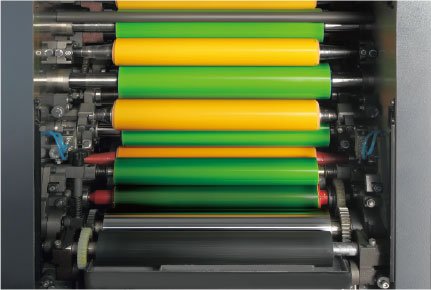

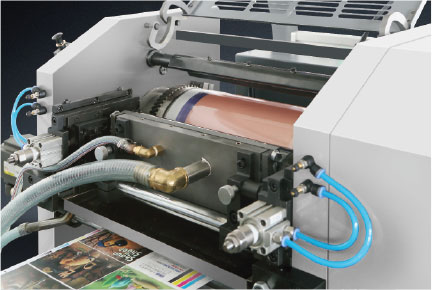

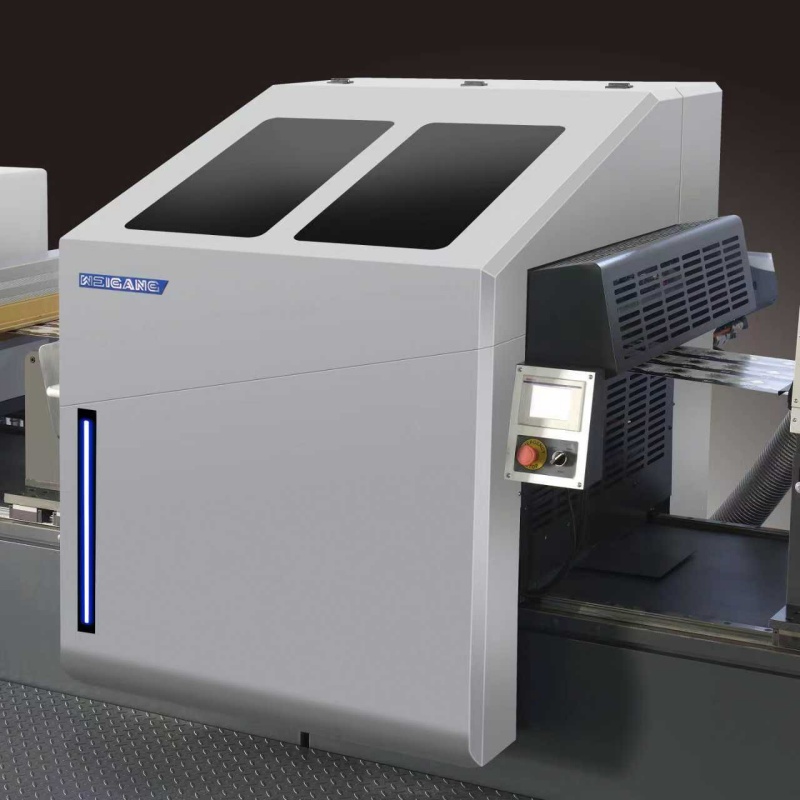

*Heavy Offset Printing Unit
Printing unit: adopting high quality and heavy offset printing unit. Assembled with 19 pieces of ink rollers,4pcs of Form Rollers and 4pieces of Water rollers (alchohol dampening system), has nice inking system which can largely avoid gear mark and ghost image. The fine and accurate printing would never be reached by flexo/letterpress machine.
-

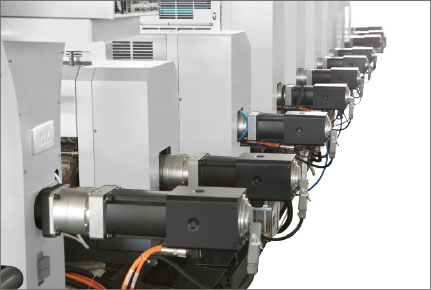

*Shaftless Driving System
Every printing unit run by an independent servo motor, 15 sets of servo motors in total for whole machine (6color) to ensure the exact color registration during high speed operation. The vertical and horizontal motions of every printing unit are all controlled by independent motor (ease the laboring and reduce the waste).
-

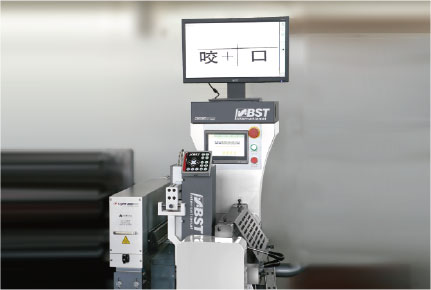

*Variable Printing Sleeve
By video still system, the machine can regulate vertical & horizontal registering without stopping, it improves the printing quality and increases the producing capacity.
-

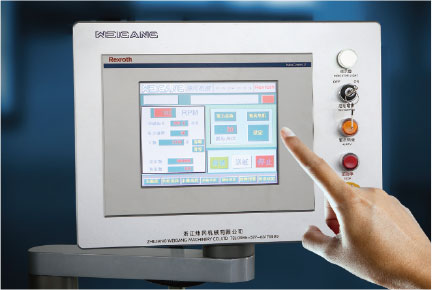

*Touch Screen Control System
Touch LCD screen, faster CPU, 12inch operating display, independent touch screen in each printing unit, powerful human-computer dialogue system, multi-guide inspecting display interface, instant alarm signal, makes operation much easier and more efficient.
-
-
*Second Pass Register Sensor

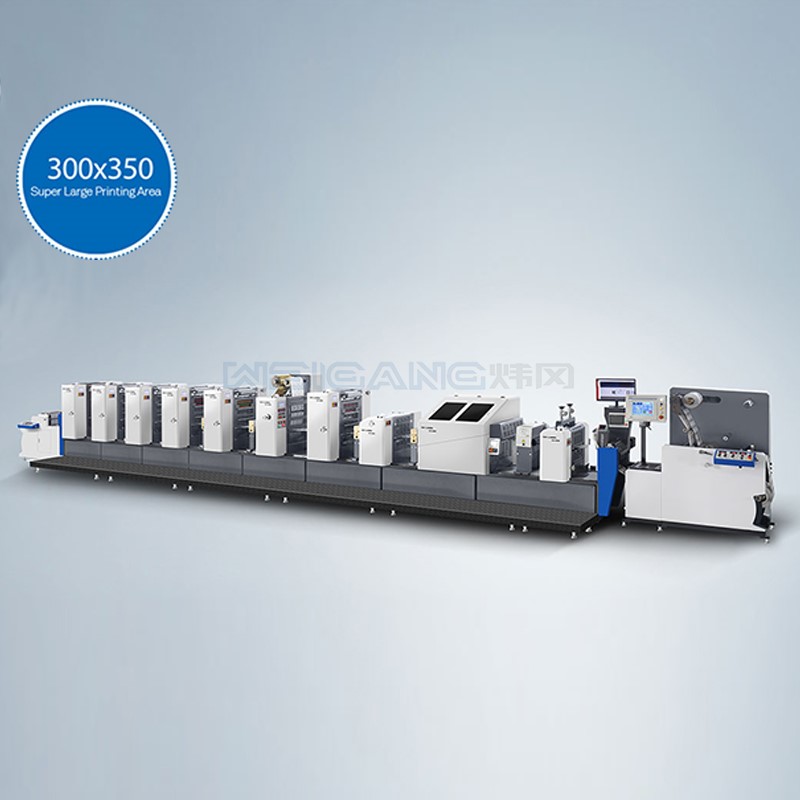

Super large printing area of 300x350mm, the max repeat length can go up to 350mm and the max running speed can be 63m/min. By high-precision photocells,the machineensures multi-register print on both side, make the possibility of label variety.
Expert of Label Printing Machine
Expert of Label Printing Machine
-

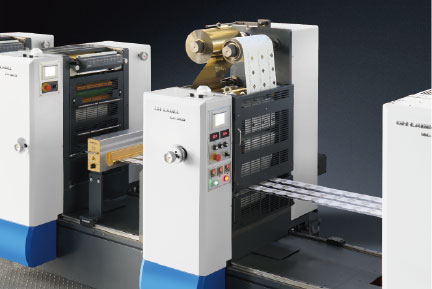

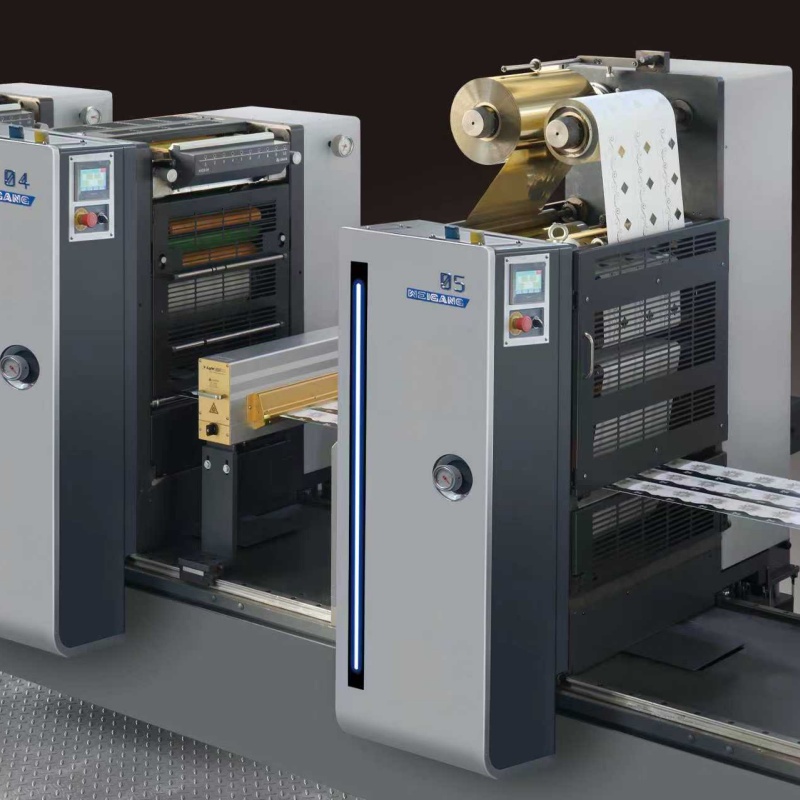

*Cold Foiling Unit
Inline cold foiling, has the characteristic of fast speed, high efficiency, increase the decorative effect for color and graphic.
-

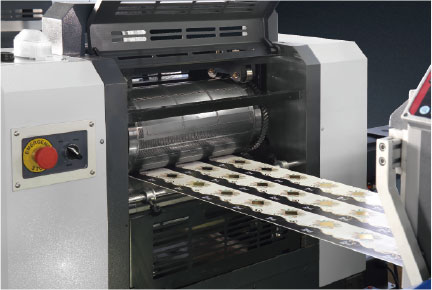

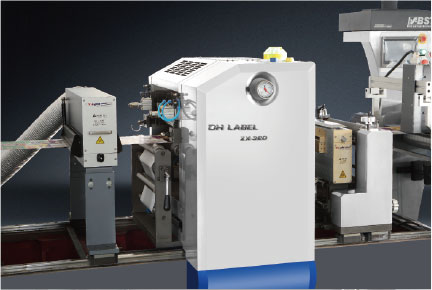

*Rotary die cutting station
One big magnetic cylinder used in this machine, largely saves the tooling cost. Different die-cutting job can be achieved by changing the flexible die.
-

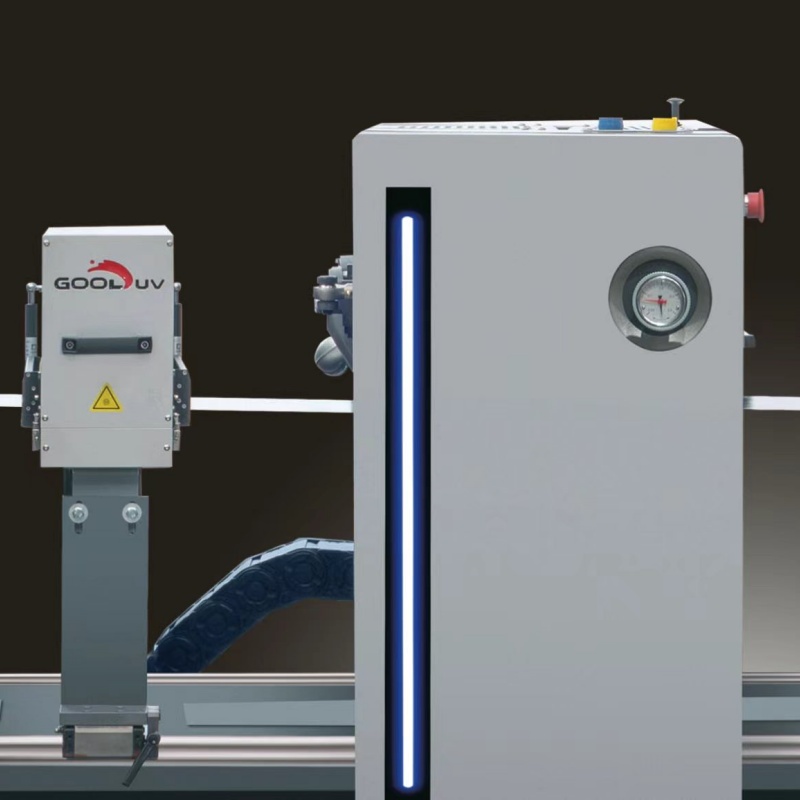

*Flexo UV Varnishing Unit with Chamber System
Flexo UV varnishing unit (both solid and spot) makes the printing more shining and attractive.
-
*Delam/Relam Unit
Delaminate the adhesive label , then printing on glue surface and re-laminating.
-

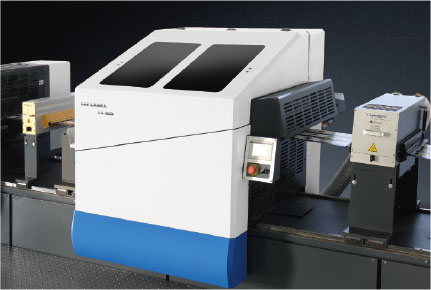

*Screen Printing Unit
Inline flat screen printing, has characteristic of thick ink layer, strong relief perception.
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Intermittent Label Offset Printing Machine-ZX-320/450
ZX-320 machine adopts latest servo control system which can ensure the material nip steady and accuracy. It can free from the printing roller change.
The operation of this machine is faster, convenient and simple. PS plate intermittent printing hits the high level label demands from short run to long run. It’s the best choice for printing highest quality labels with lowest production cost.

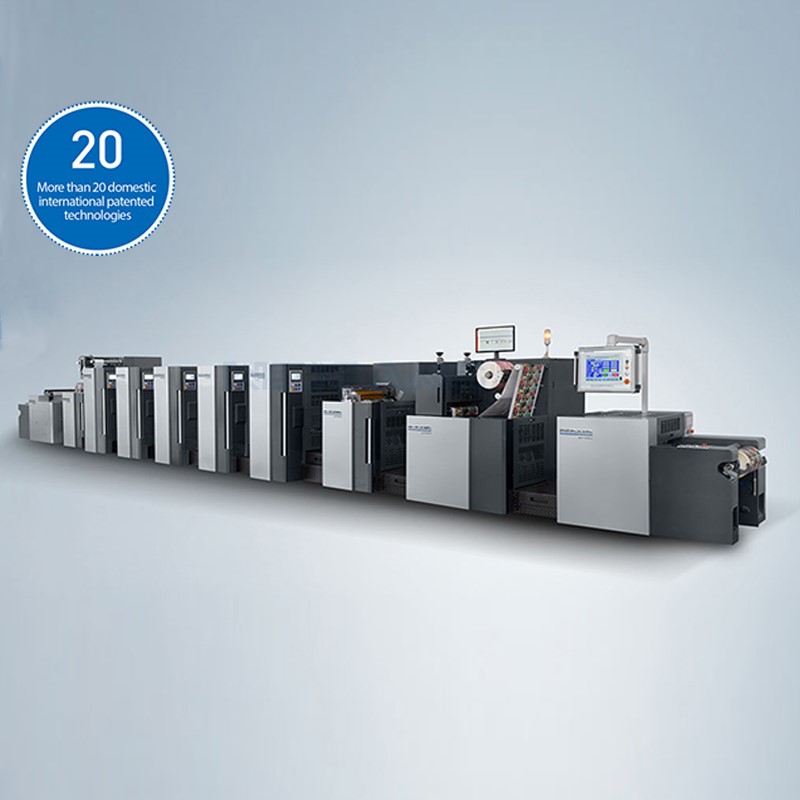

Rotary Offset Printing Machine-ZP-480/680/900/1200
