Label(logo) Flexo Printing Machine With Three Die-cutting Stations-ZBS-320G/450G
1.Adopt the ceramic anilox cylinder to transfer the ink.
2.Each printing unit adopts 360° plate-adjustment.
3.Three die-cutting stations, the first and second die-cutting station can do double sides working, the third die-cutting station can be used as sheeter.
online service
Main Features
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Each printing unit adopts 360° plate-adjustment.
3. Three die-cutting stations, the first and second die-cutting station can do double sides working, the third die-cutting station can be used as sheeter.
4. Computerized web-guiding system is installed in the front of printing unit,it ensures the material always in the right position. (standard configuration)
5. After sheeting in the third die-cutting station, conveyor belt can output the products orderly. (option)
6. Unwinding and rewinding tension are auto-controlled by magnetic powder, two rewinders is possible in this machine.
7. Video inspecting system is an option, it can watch the printing quality when in high speed.
8. The ink rollers will be separated from the printing roller, and keep running when the machine stops.
9. Main motor use inverter to adjust stepless speed.
10.The machine can finish material-feeding, printing, varnishing, drying, laminating, die-cutting, rewinding sheeter in a lump.It is an ideal machine for printing adhesive labels.
Main Technical Parameters
|
Model |
ZBS-320G |
|
Printing Speed |
60 (m/Min） |
|
Printing Color |
1-6 (colors） |
|
Max. Web Width |
320mm |
|
Max. Printing Width |
310mm |
|
Max. Unwinding Diameter |
650mm |
|
Max. Rewinding Diameter |
650mm |
|
Printing Length |
177.8-355.6mm
222.25-539.25mm（Options） |
|
Precision of Chromatography |
±0.1mm |
|
Dimensions (L×W×H) |
2600x1100x2600mm |
|
Machine Weight |
(About)3350KGS |
 |
 |
 |
|
Unwinding and Rewinding Tenstion are Auto-controlled by Magnetic Powder |

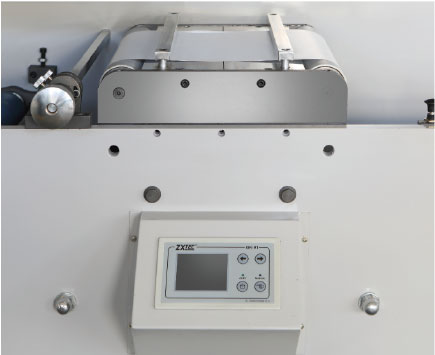

Web-guider |

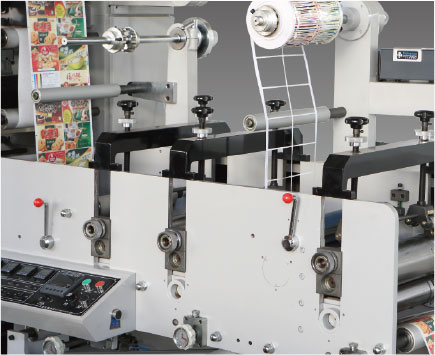

Three Rotary Die-cutting Stations |
|
|
|
|
-

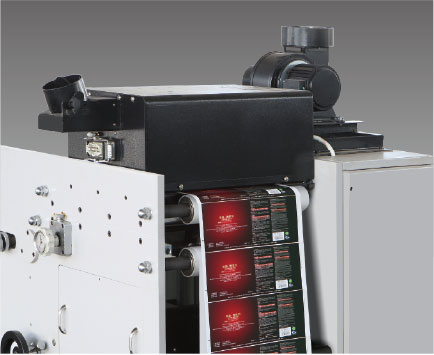

* UV Dryer System
-

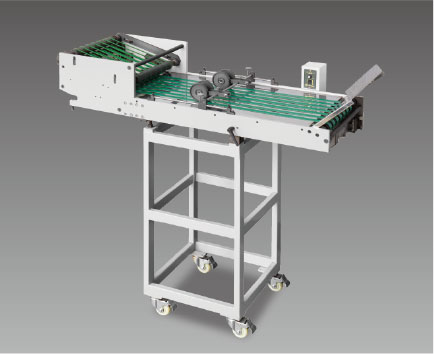

* Sheeter Conveyer
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

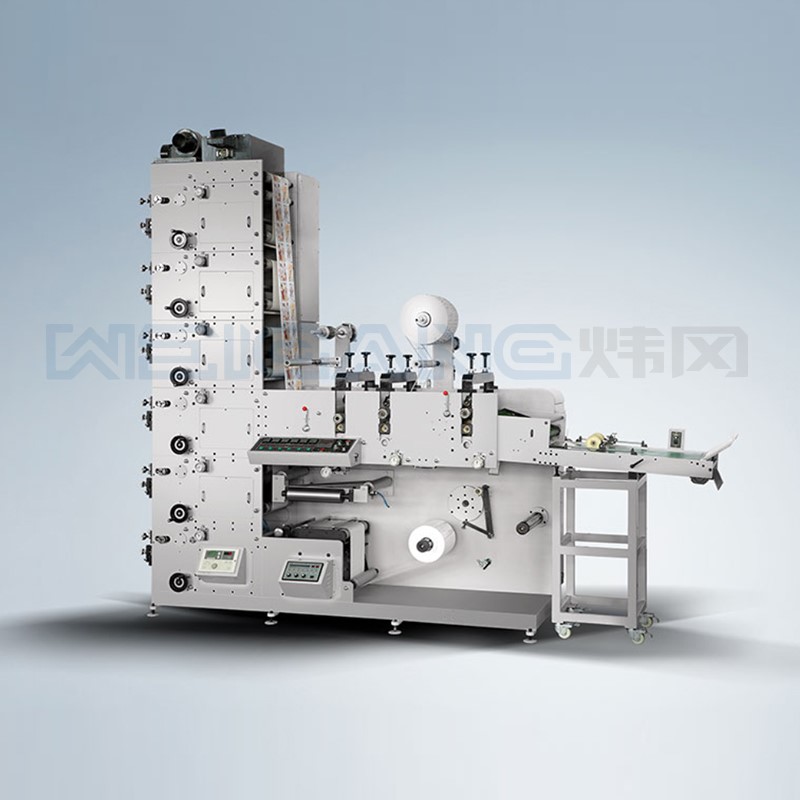

Stack Flexo Press with Three Die-cutting Stations ZBS-320G/450G
1.Adopts the ceramic anilox cylinder to transfer the ink.
2.Each printing unit adopts 360°plate-adjustment.
3.Three die-cutting stations, the first and second die-cutting station can do double side work, the third die-cutting station can be used as sheeter.
Rotary Offset Press ZP-520/680/900/1200
1. High-speed rotary offset printing machine (with sleeve technology) owns more than 20 national and international patents.
2. Adopts continuous offset printing mode and variety printing sleeve technology, leading to fast printing speed and high printing quality.
3. The plate roller and the blanket roller adopts the air expansion sleeve, achieving short plate changing time and easy operation.

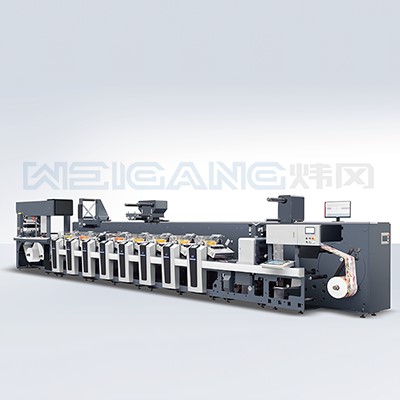

WG S350 UltraFlexible Printing Setup
1.Flexible print head combinations: Various combination choices to fit different requirements.
2.Max print speed up to 75m/min, balancing high efficiency and adaptation to various applications.
3.Max print width up to 310mm, expanding application range, better fulfilling different needs.

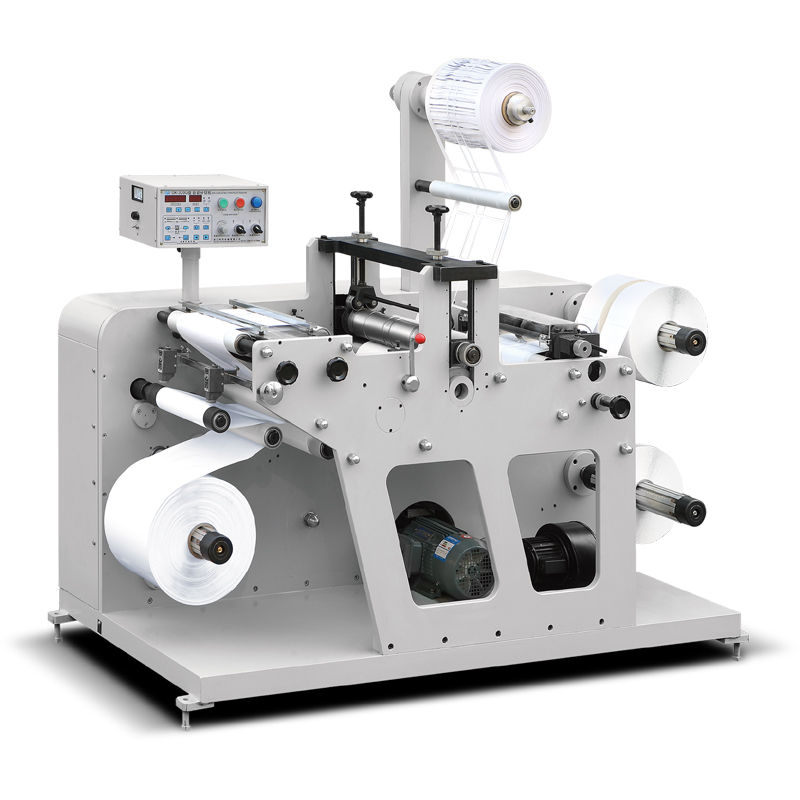

Flat-bed Label Die-cutting MachineWQM-320G/420
