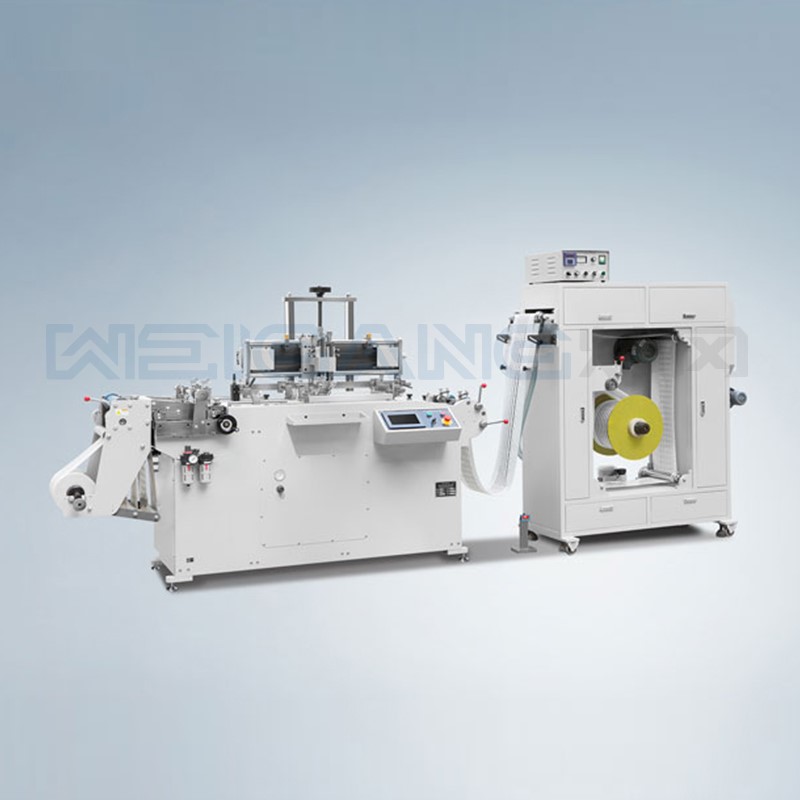

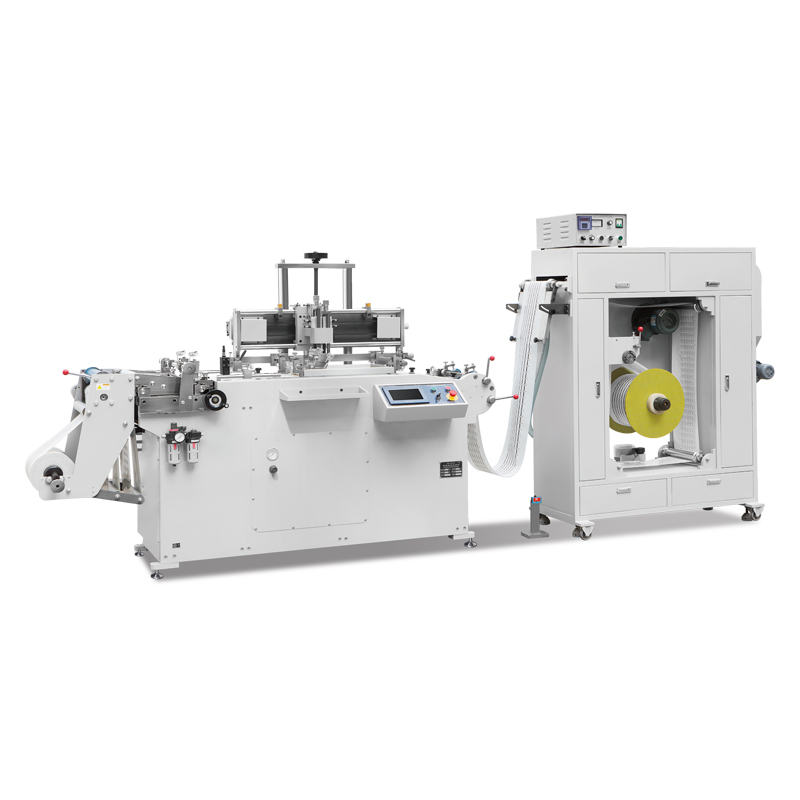

Screen Printing Machine WQ-320
The machine is used for printing reel material, such as PVC, OPP, Dacron, Security mark, adhesive tape, etc. The material towing is controlled by servo motor, the main machine driving part adopts pneumatic device,and the web-guiding is tracked by photocells.The machine has the characteristics of high accurate color register, steady material-feeding, automatic counter and alarm, convenient adjustment and compact sturcture, etc.
online service
Main Features
The machine is used for printing reel material, such as PVC, OPP, Dacron, Security mark, adhesive tape, etc. The material towing is controlled by servo motor, the main machine driving part adopts pneumatic device,and the web-guiding is tracked by photocells.The machine has the characteristics of high accurate color register, steady material-feeding, automatic counter and alarm, convenient adjustment and compact sturcture, etc.
Main Technical Parameters
|
Model
|
WQ - 320
|
|
Printing speed
|
10 - 50 次 / 分 (rpm)
|
|
Max. unwinding diameter
|
450mm
|
|
Max. web width
|
320mm
|
|
Max. printing width
|
300mm
|
|
Max. printing length
|
320mm
|
|
Accuracy
|
±0.15mm
|
|
Main motor power
|
1200w
|
|
Oven power
|
4100w
|
|
Dimensions(L×W×H)
|
24009501500mm
|
|
Oven dimension(L×W×H)
|
17506001800mm
|
|
Machine weight
|
约 (about) 1100kgs
|
-
*option：UV dryer system
