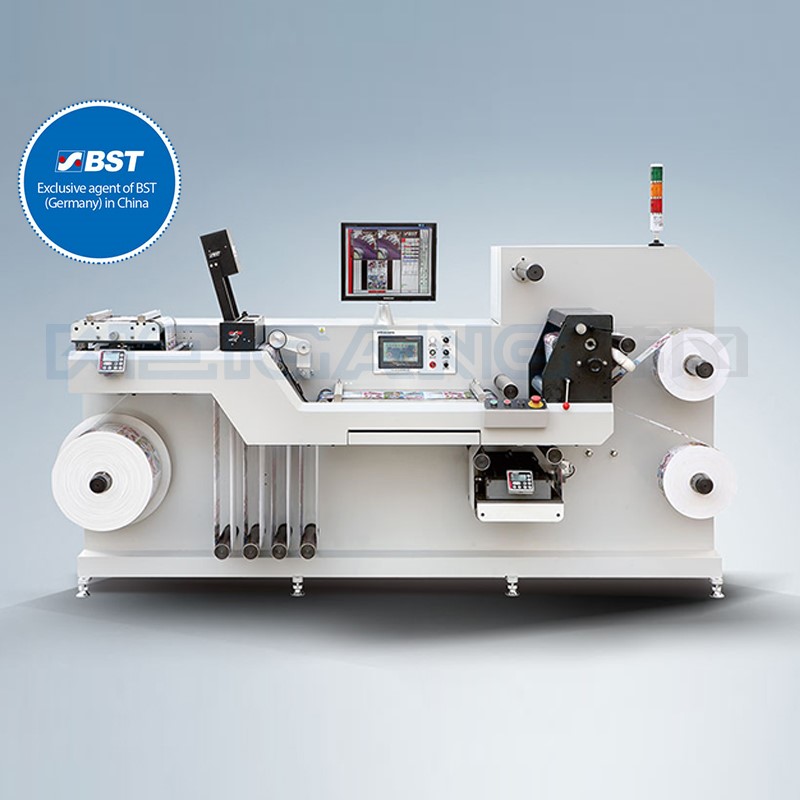

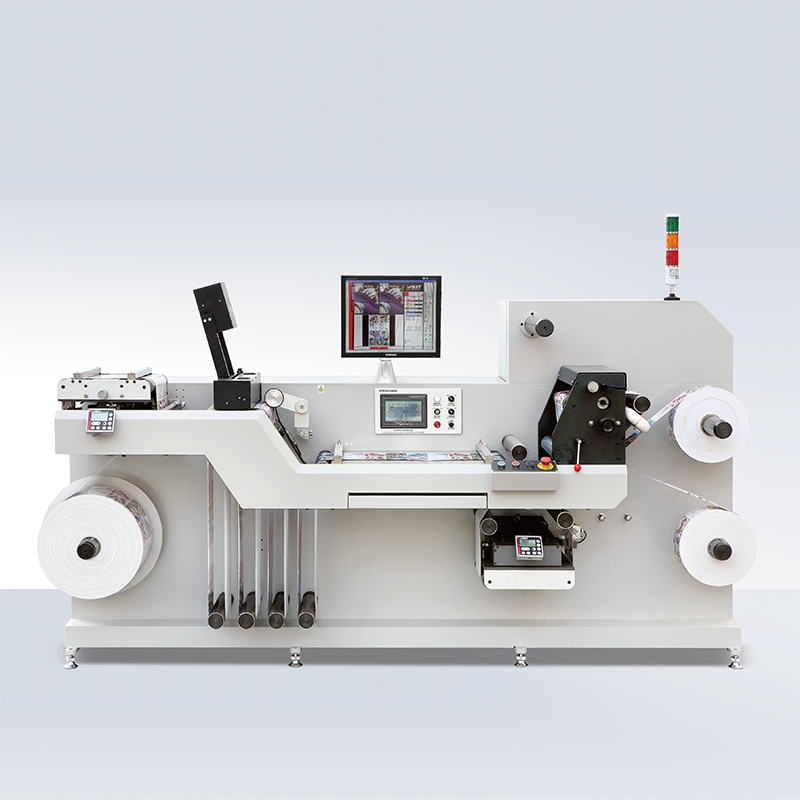

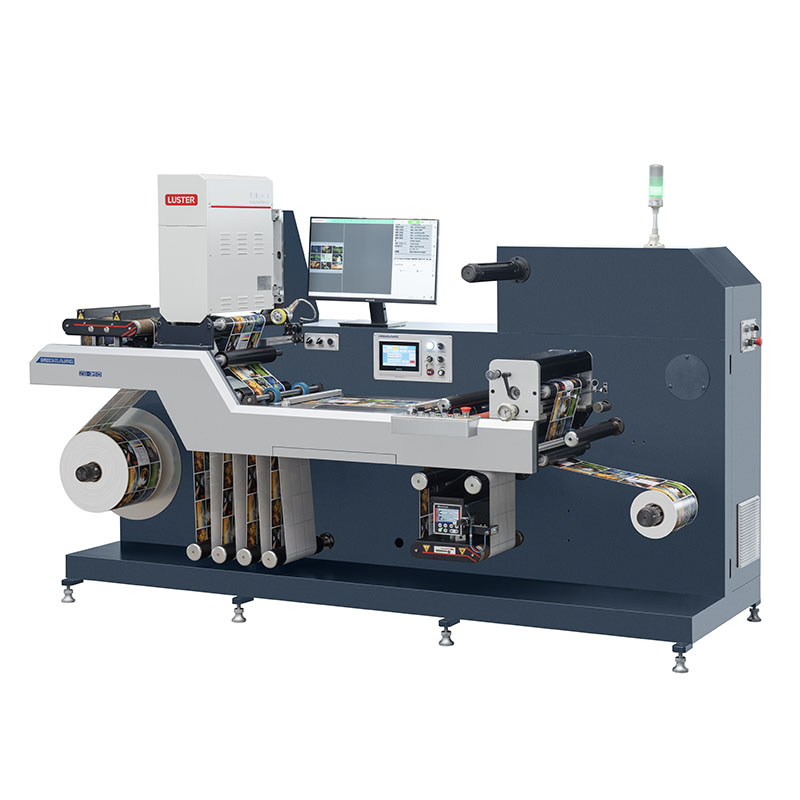

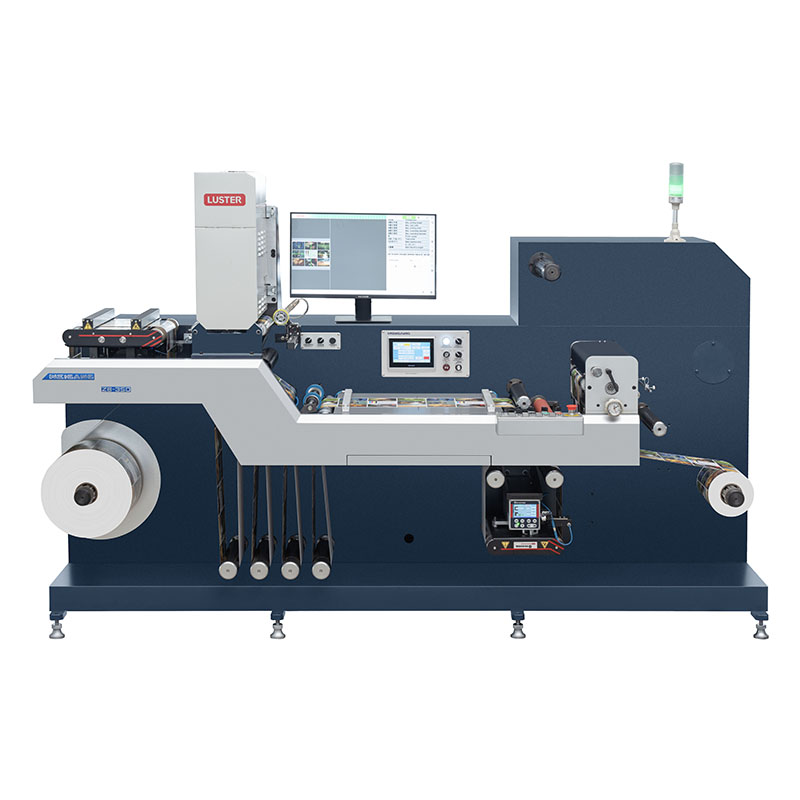

Label Inspection Machine
Finding defects at final delivery is already too late. The ZB‑350 brings vision inspection into the roll‑finishing workflow, using the LUSTER Vision Inspection System to identify missing print, color variation, register deviation and scratches inline. Integrated slitting and dual web guiding make inspection a controlled production step—revealing issues earlier, limiting rework and increasing confidence in every finished roll.
online service
Why Our Customers Choose Us
- Catch Defects Earlier :
Identify issues during roll finishing before they move further downstream or reach the customer.
- Inspect and Slit in One Pass:
Reduce repeated handling, remounting and waiting between separate stations.
- Stable Web, Reliable Decisions :
Dual web guiding supports accurate inspection and controlled rewinding at production speed.
Core Configuration

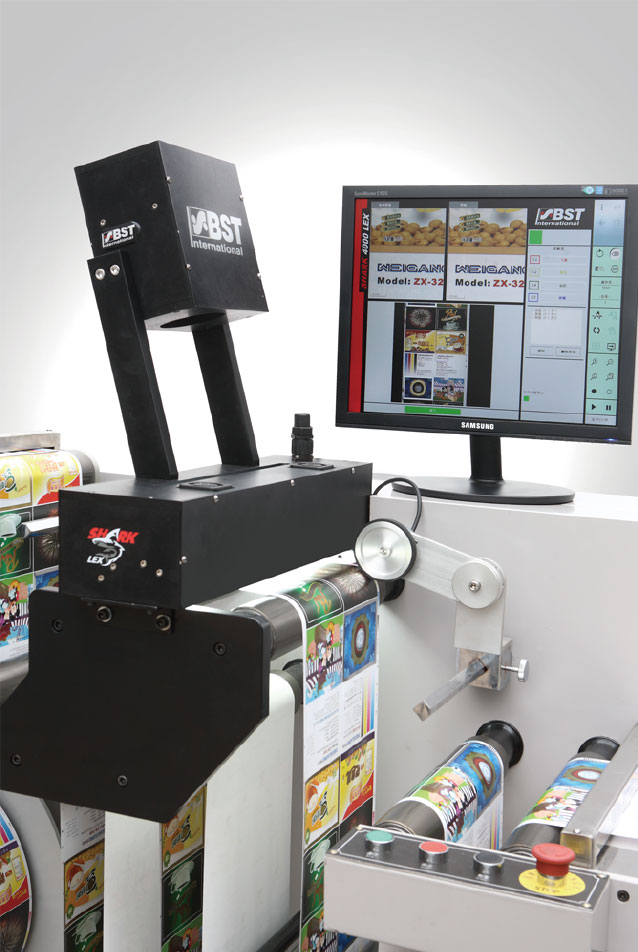

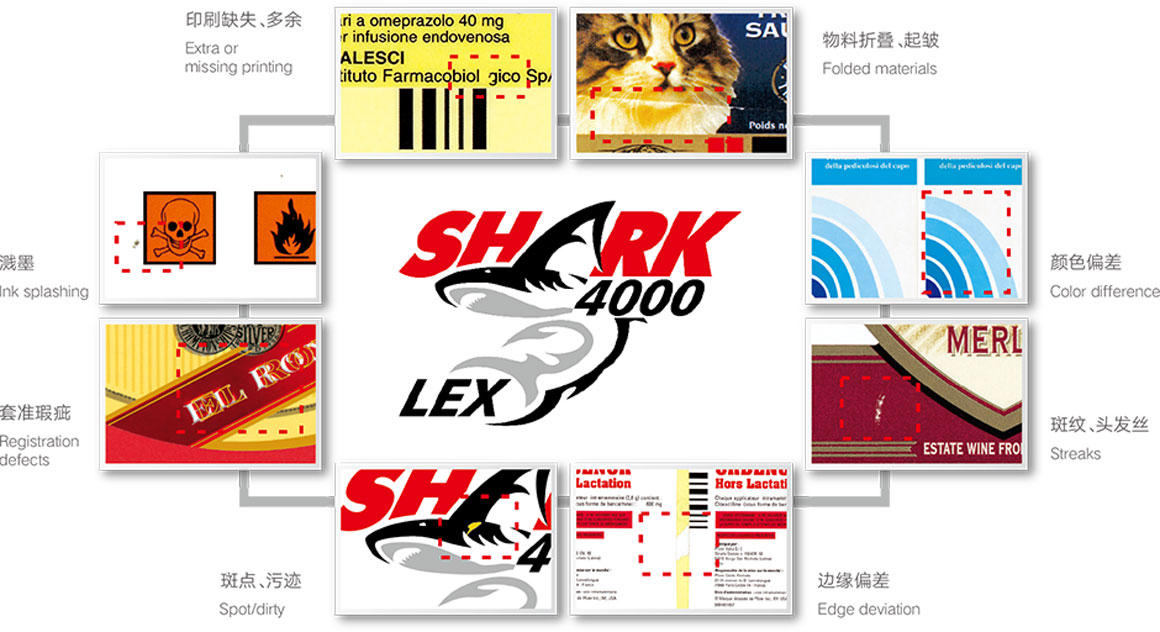

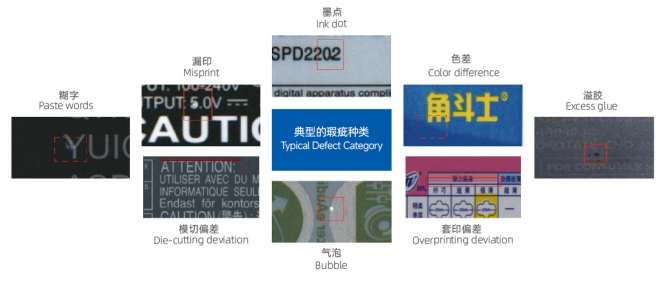

- The LUSTER vision inspection system online detects printing defects including missing print, color variation, register deviation and scratches.
- Maximum inspection speed reaches 160 m/min, balancing quality control and production throughput.

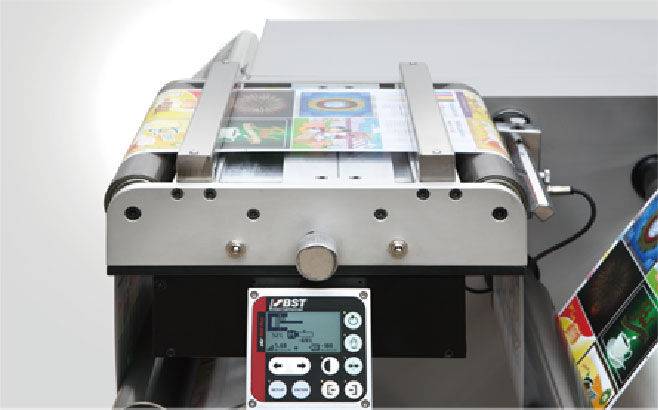

- Dual web‑guiding at unwinding and before slitting improves running stability of the material web.

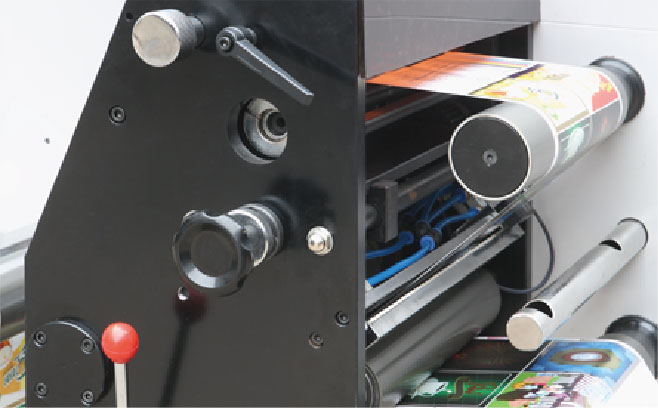

- Built‑in slitting function cuts down separate process steps and reduces reliance on manual visual inspection.
Key Specifications
| Model | ZB‑350 |
|---|---|
| Maximum Inspection Speed | 160 m/min |
| Maximum Inspection Width | 350 mm |
| Maximum Unwinding Diameter | 700 mm |
| Maximum Rewinding Diameter | 700 mm |
| Minimum Slitting Width | 20 mm |
| Total Power | 7 kW |
| Power Supply | 380V, 3‑Phase, 50 Hz |
| Overall Machine Weight | Approx. 1700 kg |
| Overall Dimensions (L × W × H) | 2820 × 1200 × 1750 mm |
